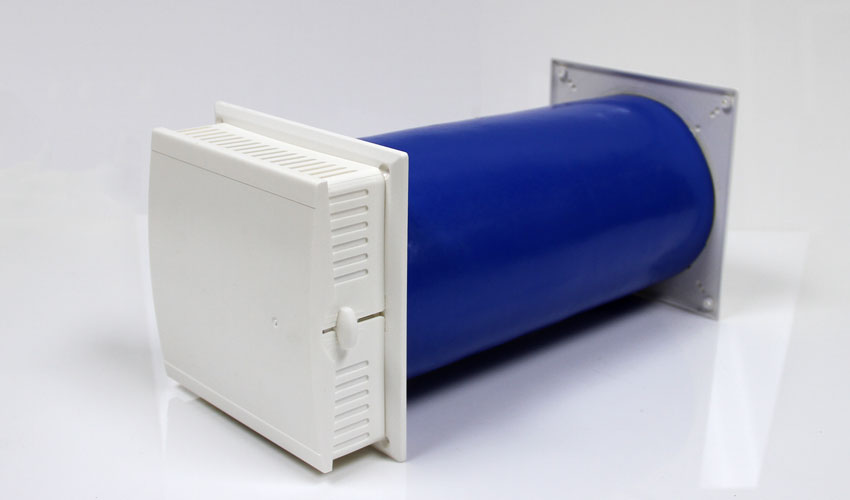

Noise insulated air supply ventilators

Provide filtered, draft-free fresh air and block out noise

  • Superior acoustic dampening insulated wall pipe dramatically reduces noise
  • Outer and inner pieces made of tough ABS molded polymer
  • Can fit any wall thickness up to 11.5 inches
  • Simple installation - no batteries or electricity required

Product Code: ASV90db

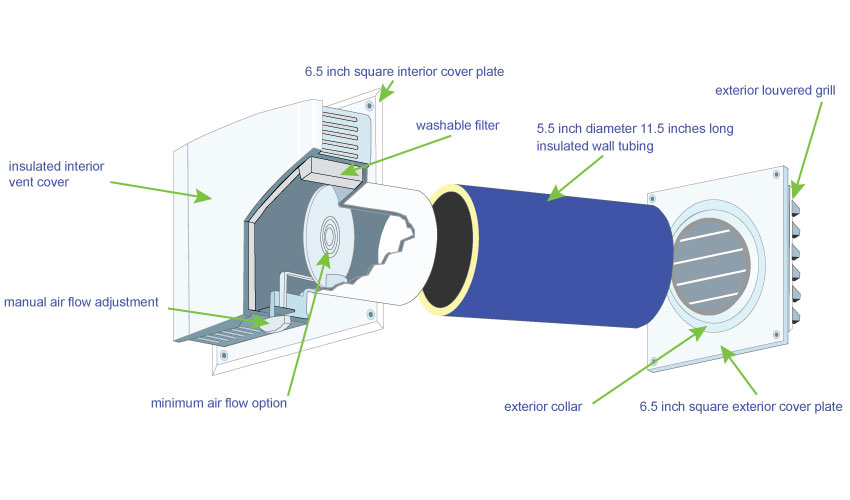

Labeled graphic of Condar noise insulated passive air supply ventilator

Standard filter captures dust, and is removable for cleaning. Can be washed as often as you like. Also helps block outside noise, and allows maximum airflow. Filters ordinary dust particles exceeding 10 microns.

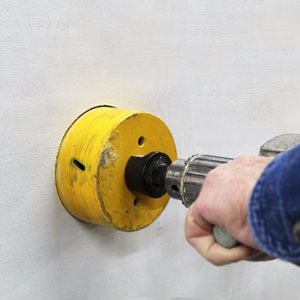

Photo of wall hole for Condar passive air supply ventilator being drilled

Drill through wall using 5.5 inch hole saw. Cut wall tubing down to size and insert.

Separate caulk into two pieces so it can be placed around ventilator's exterior and interior tubes

Separate caulk into two pieces.

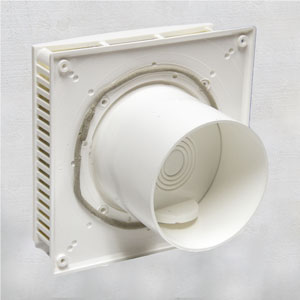

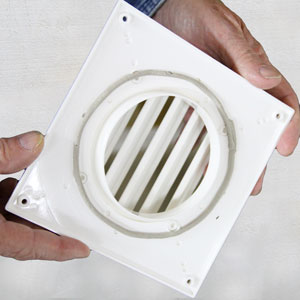

Place caulk around interior noise insulated ventilator tubePlace caulk around exterior passive ventilator tube

Place caulk around ventilator's exterior and interior tubes.

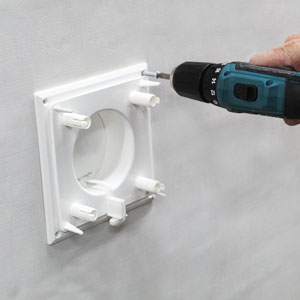

Place and insert screws in noise insulated ventilator cover plate

Place interior cover plate on wall, line up, insert screws. Repeat for exterior cover plate.

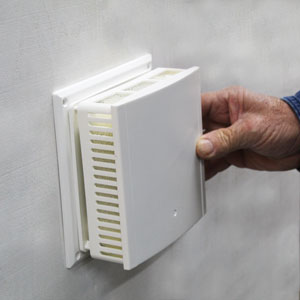

Place noise insulated ventilator top over cover place and pop into place

Place top and pop into place.

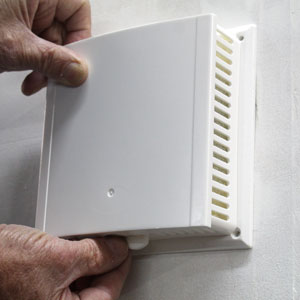

Noise insulated ventilator knob should be pulled forward to permit air flow

Pull knob to open push to close.
