Maximum Air Flow Insulated Ventilator

Provide filtered, draft-free fresh air and block out noise

  • Extra long wall pipe can fit any wall thickness up to 15.75 inches
  • Blue acoustic dampening dramatically reduces sound
  • Simple installation - no batteries or electricity required
  • Exterior grill and Interior cover made of tough ABS molded polymer
  • Open the air flow with ease by pulling attached cord

Product code: ASV100db

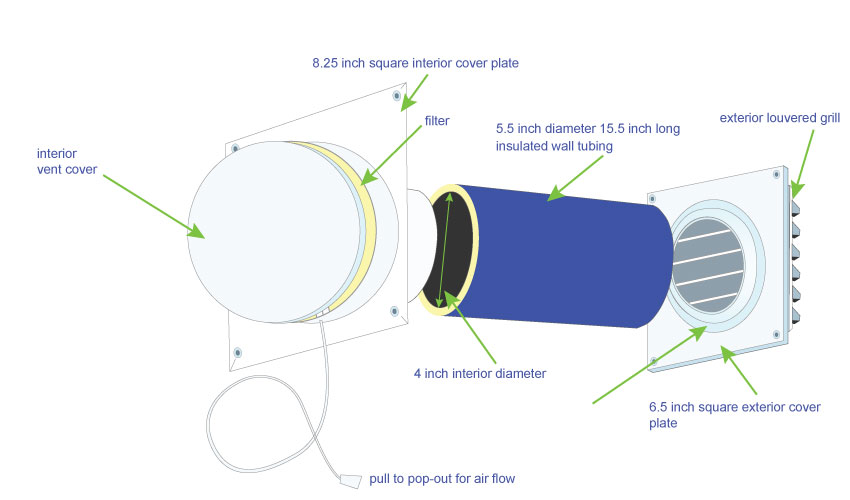

Labeled graphic of Condar pop out insulated ventilator

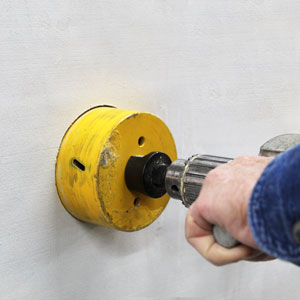

Photo of wall hole for Condar passive air supply ventilator being drilled

Drill through wall using 5.5 inch hole saw. Cut wall tubing down to size and insert.

Separate caulk into two pieces so it can be placed around ventilator's exterior and interior tubes

Separate caulk into two pieces.

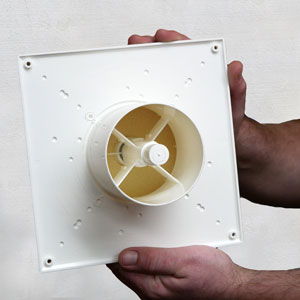

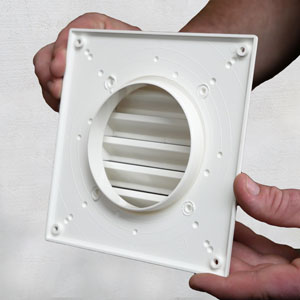

Photo of caulk placed around pop-out insulated ventilatorPlace caulk around exterior passive ventilator tube

Place caulk around ventilator's exterior and interior tubes, flush with the cover plates.

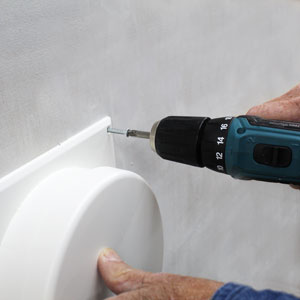

Place screws in pop-out ventilator's cover plate

Place interior cover plate on wall, line up, insert screws. Repeat for exterior cover plate.

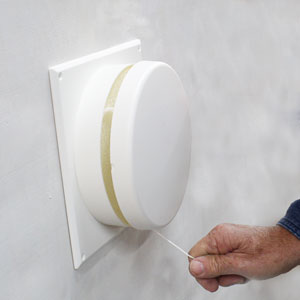

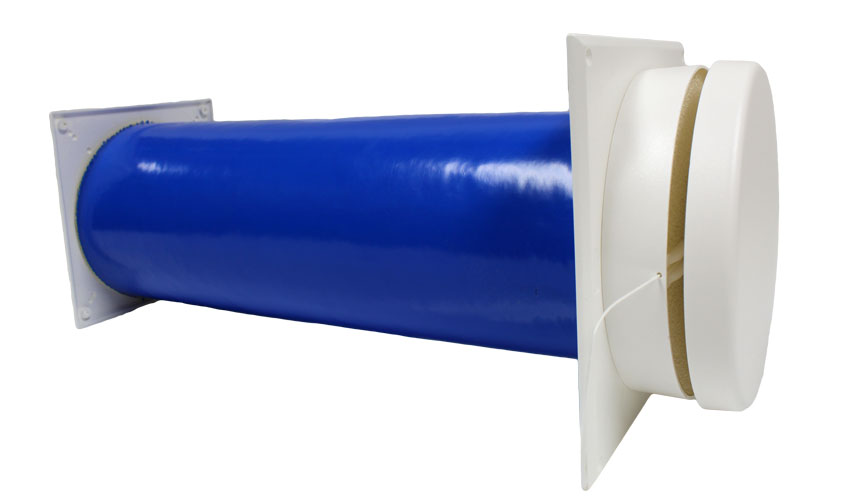

Pull string to pop out Condar ventilator and supply fresh air to room

Pull string to pop-out ventilator and supply fresh air to room.

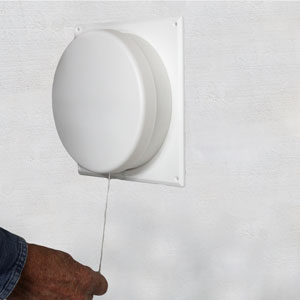

Pull string again to close pop out Condar ventilator

Pull string again to close pop-out ventilator.
